Nordic
N7301 PICTOR 9-32V 32W DS/FLOOD
N7301 PICTOR 9-32V 32W DS/FLOOD
Regular price
$834.30 AUD
Regular price
Sale price
$834.30 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Compact & low profile design.

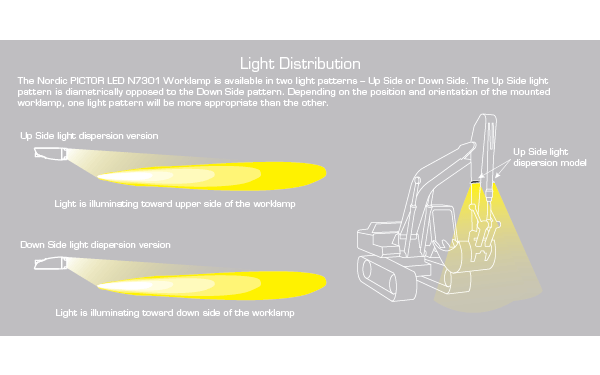

- Available in up or down side light dispersion models.
- Multi-voltage operation.
- Long life LEDs.
- Over voltage, over temperature, spike & polarity protected.
- Environmentally sealed cast alloy body.
- Extreme shock resistance.
- Whiter than daylight colour temperature.
- Replaceable lens.
- Deutsch DT connector encapsulated in body.
- 5 year warranty.
- Ideal for mining, forestry, construction and material handling application.
- Can be mounted on sides of excavator boom.
- Theoretical Lumen Output:4,100lm
- Operating Lumen Output:2,600lm
- Voltage:12-24V
- Input Current:1.3A @ 24V
- Max Power Consumption:32 Watts
- Lifetime:50,000 Hrs
- Connector:Deutsch DT Series 2 Pin
-
Mount:4 x M8 Bolt
User supplied - Shock:60 G
- Vibration:15.3G rms 24 - 2000 Hz
- Lens:PC
- Body:Aluminium
- Weight:1.6 kg
- IP Rating:IP68
- Salt Mist:ISO 9227
- EMC:ISO 13766, ISO 14982, ISO 7637-2
- Operating Temp:-40°C to 85°C
- Colour Temperature:5700K
- Light Source:6 x Cree® XML-2 LEDs
